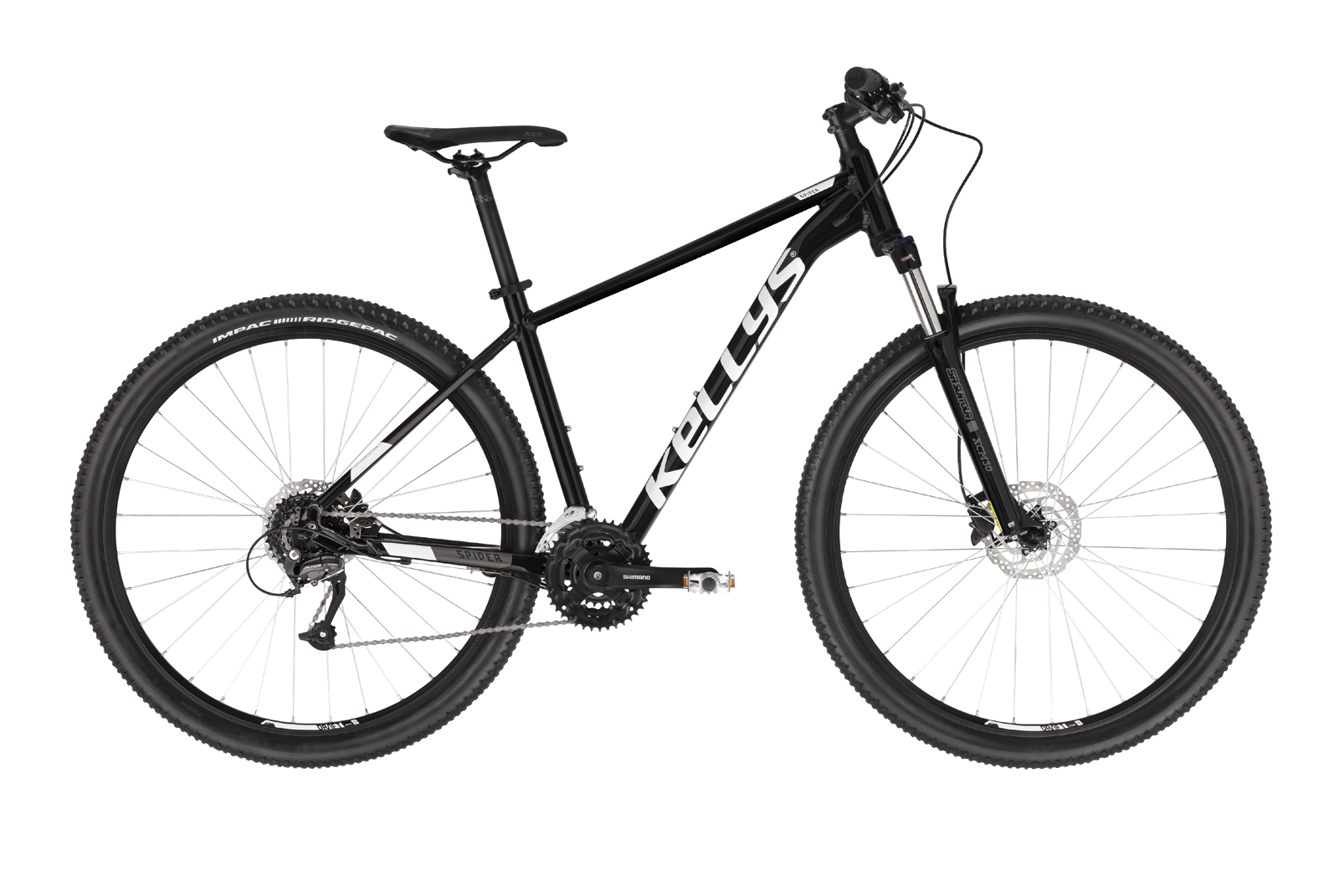

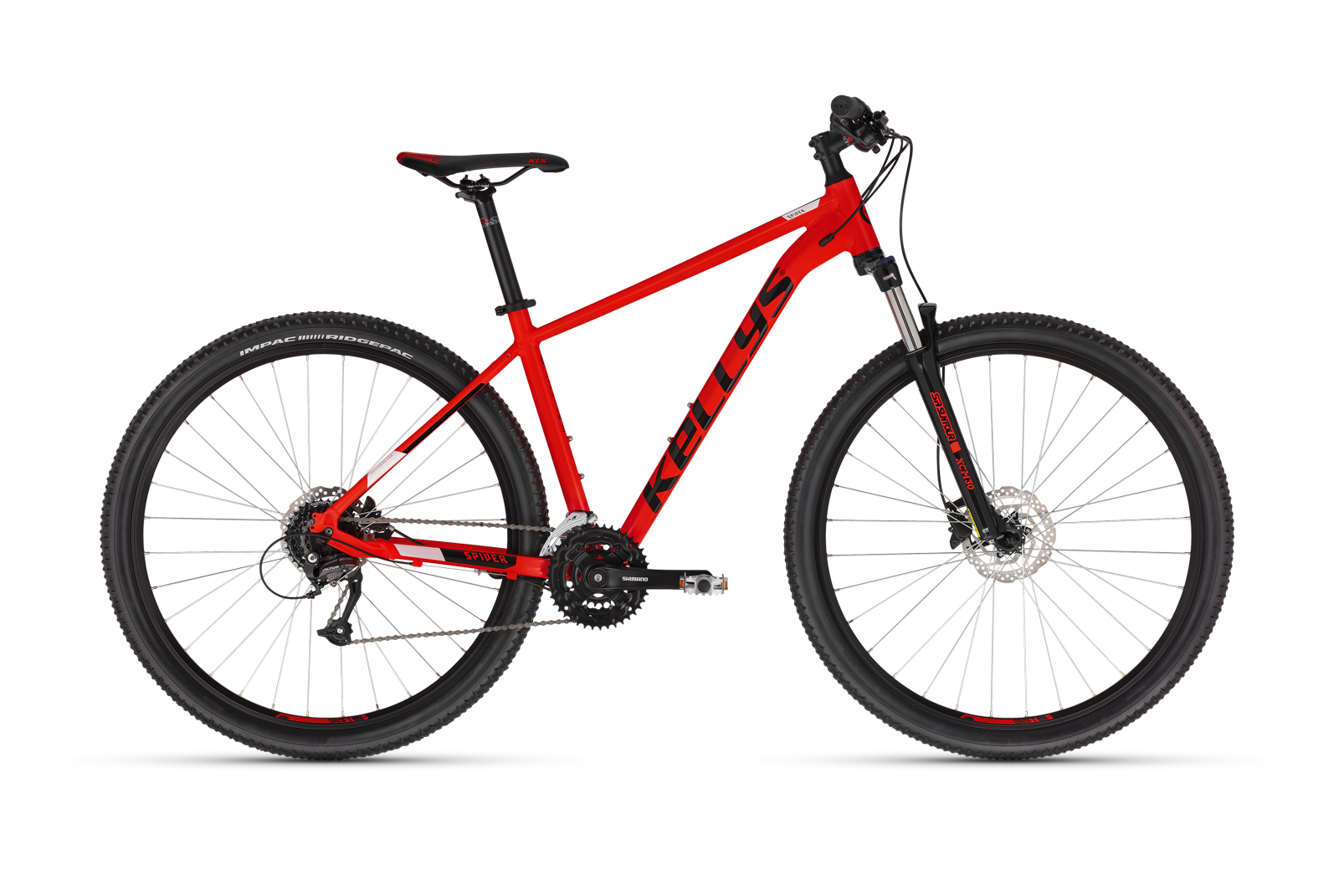

KELLYS Spider 50

Rahmen KELLYS Alutec RRC 27.5″ – Race Ready Concept
Gabel SR SUNTOUR XCM32 NLO DS (27.5″), 100 mm, coil / Speed Lockout
Kurbelgarnitur SHIMANO TY501 (42x34x24T) – length 170 mm (S), 175 mm (M)
Schaltwerk SHIMANO Altus M310 (direct mount)
Umwerfer SHIMANO TY600 (34.9 mm)
Schalthebel SHIMANO SL-M315 Rapidfire Plus
Gänge 24
Kassetenzahnkranz SHIMANO CS-HG200-8 (12-32T)
Kette KMC Z8 (110 links)
Bremsen SHIMANO MT200 Hydraulic Disc
Bremshebel SHIMANO BL-MT200
Bremsscheiben 160 mm front / 160 mm rear
Naben SHIMANO TX505 Disc Center Lock (32 holes)
Felgen KLS Draft Disc 584×21 (32 holes)
Speichen steel
Reifen IMPAC Ridgepac or WTB Nano 54-584 (27.5″x2.10)
Steuersatz semi-integrated
Innenlager cartridge (122 mm)
Vorbau KLS Active – diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm
Lenker KLS Active RiseBar – diam 31.8 mm / rise 18 mm / width 660 mm (S), 680 mm (M)
Griffe KLS Advancer
Sattelstütze KLS Active – diam 30.9 mm / length 350 mm (S), 400 mm (M)
Sattel KLS Sentinel 2
Pedale alloy
